How to Install VXDIAG Ford IDS V130 & Mazda IDS V131?

 Tutorial: How to install Ford IDS V130 and Mazda IDS V131 software driver on Windows 10 operating system.



Software can be downloaded free here

Free Download Ford IDS V130 Mazda IDS V131

Compatible devices:

VXDIAG VCX NANO Ford/Mazda USB or WiFi, VCX SE or VCX Plus Ford/Mazda, VCM2 Clone, VNCI MF J2534 Ford/Mazda

Operating system: Windows 10 (free to test on Win7 and Win11)

NOTE: Don’t install both Ford IDS and Mazda IDS on the same operating system!!!





How to Install Ford IDS V130?

Open Ford IDS V130 software folder

Install IDS_130.01_full.exe setup

Select setup language
Install setup until completed
Reboot

Install VCI_Software_1.0.0.10 driver

Install VX Manager 1.8.9

Install Passthru J2534 and Ford/Mazda IDS driver

Copy and paste IDS_Patch to desktop
Connect VXDIAG device with laptop
Run VX Manager
check device status

Run Ford IDS from IDS_Patch on deaktop
Software is ready to use



How to Install Mazda IDS V131?

Mazda IDS installation is easier than Ford IDS. Mazda does not need to install VCI software driver.

Open the Mazda IDS V131 software folder
Install MazdaIDS-131.00.exe setup.

Install setup until completed
Reboot

Install VX Manager

Install Passthru J2534 and Ford/Mazda IDS driver

Connect VXDIAG device with laptop
Run VX Manager
check device status

Copy and paste IDS_Patch to desktop
Run Mazda IDS from IDS_Patch on deaktop
Software is ready to use

www.obdii365.com

How to Use PSA Service Box with VXDIAG VCX NANO GM?

 Tutorial: How to set up PSA Service Box SPS programming for Opel/Vauxhall using J2534 passthru device.



The hardest part is creating an account.

You need to purchase the software update from Service Box, a PSA site that now deals with GM products in Europe.

*Opel Vauxhall Vehicles Not available Due to the separation of General Motors and Opel/Vauxhall, ACDelcotds.com does not have any Service information or Programming for Opel/Vauxhall vehicles. Users looking for this information need to visit public.servicebox-parts.com for any and all Opel Vauxhall information.



It does not use your email address as a login, instead it will use a UserID code that will appear in your email shortly after registration… Except, in my case it didn’t and I had to use the reset password link, to get a one time password, which I then updated.



Then register it as a professional and log in OK, once you are in, you can select ‘Purchase Opel/Vauxhall Legacy & Chevrolet Subscription‘, then select the brand. Pick ‘vehicle programming software (SPS)‘, add to the basket (link at the bottom) then proceed through to the checkout.



if come to purchase SPS for 2 hours it requires an active VAT number, ignoring the warning requesting and complete your details by adding the required VAT number, it then carries on OK to payment!

Make sure you have a fully updated windows, that you have internet explorer and the latest version of java installed before you buy the subscription and start the downloads etc. And make sure you have a good internet connection when installing and downloading.

Next step is to get your interface in J2534 passthrough mode. You can use a cheap vxdiag vcx nano gm/opel scanner to do this, but you’ll need to update the firmware using VX MANAGER, and then again use VX MANAGER to put it into passthrough mode.

During installation of the VX Manager make sure you choose only “PASSTHRU – J2534” (1st option) and have the cable plugged in. Then open the program to check if it sees the cable.

The VCXNano can appear like any number of ‘factory’ diagnostic tools. VX MANAGER is used to load the license into the nano to turn it into the required tool, so the factory software (in this case gm gds2) will see it as a factory tool.



Usually when you buy a nano you should buy the one designed for the software you want to use, that way They come pre-licensed.



The SPS procedure is the same as in the ACDelco TDS website.

A lot have finished reprogramming the HPCM2 module to re-set an SHVCS error, using a VXDIAG VCX Nano and Service Box.

Some other J2534 devices that tested working with online service box:

Autel MaxFlash VCI but seems buggy and slow.

Launch j-box 3, which is basically rebranded Drew Technologies CarDAQ-Plus3. Top level devices in pass-thru world.
Quite pricy, but worth any money IMHO.

scanmatik continues not working with diagbox

KTS 590 works well with both PSA and Renault.

Keep updating…

www.obdii365.com

Free Download Diagbox 9.150 Software

 Peugeot Citroen DS Opel Diagbox 9.150 was tested and approved works perfectly. Obdii365.com here provides software download for free.



Free download Diagbox 9.150

Already patched. Don’t need activation.

If your system doesn’t have diagbox versions, run 1-Block defender to close anti-virus programs. Then run Diagbox 9.150.exe.

If your system has other diagbox version installed, run 1-Block defender, then run 2-Diagbox_Cleaner to delete other diagbox versions, then run Diagbox 9.15.exe



Software version: Diagbox 9.150, no vmware

Operating system: Windows 10/Windows 11 64bit

Vehicle coverage: Peugeot, Citroen, DS, Opel till 2023

What is the firmware used with this version?

1. Lexia 3 full chip, it will support all Diagbox 9.xx versions. there is no solution for old and Lite Lexia3 VCI

2. VXDIAG VCX SE/VCX DoIP with PSA license

PSA Peugeot Citroen Diagbox License is Ready on VXDIAG!

*VXDIAG is good on 2006- CAN BUS models. For older Kline models, use lexia3.



Multilingual:  English, German, Danish, Spanish, French, Italian, Dutch, Portuguese, Suomi, Swedish, Romanian, Croatian, Hungarian, Czech, Polish, Greek, Slovenian, Polish, Korean, Turkish etc

Diagbox 9.150 software display

VXDIAG VCX SE Update PSA Diagbox License

 Good news! VXDIAG released new PSA Peugeot Citroen DS software for vxdiag diagnostic tools.



Compatible devices:  VXDIAG VCX SE, VXDIAG VCX DoIP series



*VXDIAG does not have a single vcx nano for PSA yet.

*Available for VCX SE V94SE****, VCX Multi V52XP****, V71XN****, V81XD****, V83XD****, V94XD*****, VCX PRO P71XP****.

*Must enable PSA license to use diagbox software.



How to Activate PSA License to VXDIAG scanners?



1. Purchase PSA license authorization

https://www.obdii365.com/wholesale/vxdiag-psa-software-license.html

2. Install PSA license in vx manager

3. Update firmware and license in vx manager

4. Install and activate Diagbox software



Free Download VXDIAG GM GDS2 2023.10 Tech2win DPS

 VXDIAG VCX NANO GM (as well as vcx se, vcx DoIP GM series scanners) latest GDS2 software goes to V2023.10.19 (Oct. 2023).



Free download VXDIAG GM GDS2 V2023.10 software

GDS2 2023.10 + Tech2win + DPS

Software including:

GDS2 2023.10.19

Tech2win

DPS 4.52

(Contact www.obdii365.com customer service to send patch online)

GDS2 Software version:

GM Global: V2023.10.19
GM China: V2023.10.12
Saab V2023.10.05
VINFAST v2021.4.0
Opel/Vauxhall V2023.4.0

Operating system: Win7/Win10

Supports Buick Enclave, Encore, Envista, Cadillac CT4, CT5, Lyriq, XT4, XT5, XT6 etc till year 2024.

How to Install VXDIAG GM GDS2 and Tech2win?

1. Install DPS 4.52

2. Install Tech2win using the AutoInstall.exe file
3. Install GDS2 using the AutoInstall.exe file

4. Install VX Manager (install passthru and GDS2/T2W drivers)
5. Run software (run GDS2 from patch, run Tech2win on desktop)
* If you are running Windows 10 you MUST disable driver signing enforcement. For detail installation instruction, check PDF here.



NOTE:

Before installing GDS 2023.10.19 software, must install DPS 4.52 software, otherwise GDS2 will report errors.

VXDIAG VX Manager, Firmware, License and Driver Update

 Here is the newbie instruction to update VXDIAG VX Manager, Firmware, License and Drivers. The instructions can be applied to all VXDIAG VCX NANO, VCX SE and VCX Plus diagnostic tools.

How to Update VXDIAG VX Manager?

Visit www.vxdiag.net official website and download the latest version vx manager driver.

or download here directly

http://www.vxdiag.net/managecenter/download/vxdiag.zip

Here is current version 1.8.9 on Mega as well.

https://mega.nz/file/udohRDTb#xrt4ui1A2yh0GnOWHPmm2jsAdD7PU3G7vcU2K3tCtYA

Then install vx manager.

(Install it on Win7, Win8, Win10. WinXP is not supported).





How to Install and Update VXDIAG Device Driver?

Connect vcx nano/vcx se or vcx plus with laptop via USB cable

Go to the Diagnostic tab in vx manager.
Make sure your Passthru and corresponding device driver are installed.

If not installed, press icon and “Install” it.

If there is a purple icon of the driver which means there is a new software version update that needs newer driver support.
Press the corresponding driver and Update driver.

How to Update VXDIAG Scanner Firmware?

After installing latest vx manager, connect press Firmware upgrade

Check if there is a new VCI update, Press Yes to update
If it is DoIP device, update both VCI and DoIP firmware.

How to Update VXDIAG License?

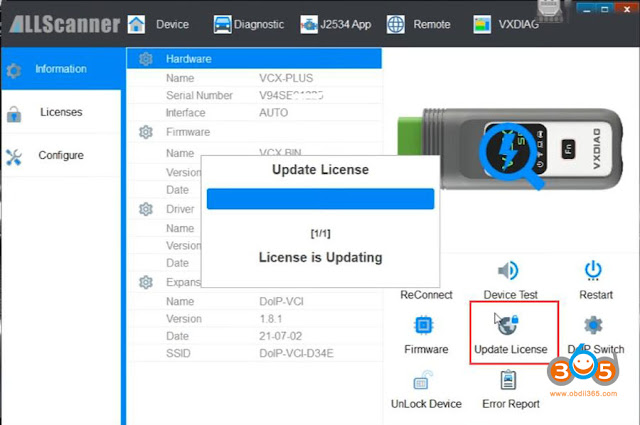

Press “Update License”

NOTE: Always update firmware first, then update license afterwards.

Check when your license will expire in “Licenses” tab.

Vxdiag license should be renewed every 60 days starting from year 2021.

Renew license requires update vxdiag vci firmware as well.

Some Common errors and solutions about vx manager firmware, license and diver:

1). If vx manager has error  “Updated license failed! Retry. ErrorCode:8001”

Make sure you have updated both VCI and DoIP firmware.

Then update firmware and license again. Sometimes need to update firmware and license for several times to set it up.



2). No device in vx manager

1. Please check if the vx manager is newest v1.8.9 version. If not, please uninstall old version, then download new version from www.vxdiag.net. Install the new version vx manager to try again.

2. If still no device, please change USB port or USB cable to try.

3. Disconnect device from laptop and car, after 3 minutes, connect again.

4. Please open Network connection on control panel, find Ethernet (Realtek USB FE Family Controller), check the IP address is correct. Correct IP should be 192.168.171.1 or 192.168.8.1.If IP is not correct, need to reset firmware.



3). Error : “The device license for this application is invalid or expired ” when install device driver.

VX Manager manager is too old. Update to latest version and try again.



4).  License invalid, please update VCI.

Solution: The error is usually caused by missing license. Check available license in “Licenses” area
If cannot see your license, contact your dealer to add license to your vcx se.



5). Not Found Device or License.

Solution: It is driver problem Update firmware in vx manager.

Then re-install devicedriver.



6).  Update license Failed. Error 4001
There was an error communicating with the server.

Solution: Always update the firmware first, then update license.
